Happy to be EMC Elect 2015

For the second year I’ve been selected “EMC Elect 2015”. Like my previous post on being selected VMware vExpert, being named EMC Elect 2015 validates that the little bit I contribute to the EMC and VMware community matters and that I’ll continue making the effort.  Click on the blue box for the full EMC Elect 2015 list:

347028-graphic-EMC Elect 2015-hires.jpg

Advertisements

Mission Accomplished – 2015 vExpert

I received my official letter today that I was welcomed into the 2015 vExpert Program.  With this livevirtually blog I set out to post answers to questions people asked me that I thought would be useful to others in the community. To be recognized for this effort is rewarding and I am grateful for it.  Thank you!  Now I just need to keep doing it and I plan to.  Click the badge below for the official announcement and full list of the many talented members of the 2015 vExpert community:

vExpert-2015-Badge

Virtual SAN 6 – What Does a Maxed Out 64 Host VSAN Cluster Look Like?

The big VMware vSphere 6 launch was yesterday and along with it comes Virtual SAN (VSAN) 6. Here are a couple of good summaries:

Rawlinson Rivera – VMware Virtual SAN 6.0

What’s New: VMware Virtual SAN 6.0

The big news is that a vSphere cluster will now scale to 64 hosts and thus VSAN will too. So what does that look like fully scaled up and out with the maximum hosts, maximum disk groups, and maximum disks per disk group? By the way, for details on how VSAN scales up and out check Is Virtual SAN (VSAN) Scale Up or Scale Out Storage…, Yes!.

Virtual SAN (VSAN) Enabled vSphere Cluster Scaled Up and Out to 64 hosts (nodes).

64 host VSAN

Oh yea, the overall VSAN performance is significantly improved. Plus with double the number of hosts that doubles the performance. In addition, VSAN now supports an All-Flash configuration that even further increases the performance.

Virtual SAN 6 Rack Awareness – Software Defined Self Healing with Failure Domains

I continue to think one of the hidden gem features of VMware Virtual SAN (VSAN) is it’s software defined self healing ability. I wrote about it a few months back here in: Virtual SAN Software Defined Self Healing

Since Virtual SAN is such a different way to do storage, it allows for some interesting configuration combinations. With vSphere 6 (built into vSphere 6), VMware will be introducing a new add-on feature for Virtual SAN called “Rack Awareness” accomplished by creating multiple “Failure Domains” and placing hosts in the same rack into the same Failure Domain. This “Rack Awareness” feature exploits the # Failures To Tolerate policy of Virtual SAN.

The rest of this post will look a lot like the previous post I did on self healing but will translate it for the Rack Awareness feature.

Minimum Rack Awareness Configuration

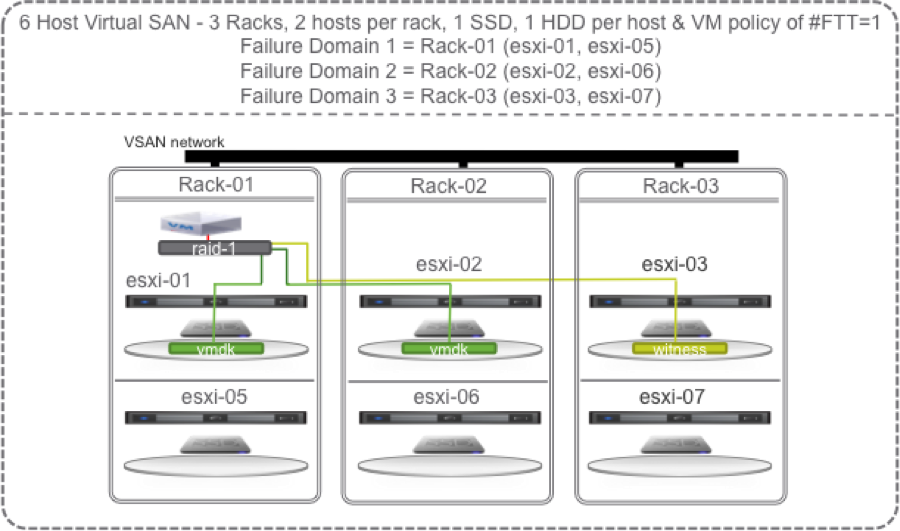

Lets start with the smallest VSAN “Rack Awareness” configuration possible that provides redundancy: a 3 rack, 6 host (2 per rack) vSphere cluster with VSAN enabled and 1 SSD and 1 HDD per host. In VSAN, an SSD constitutes a disk group so the 1 HDD is placed into a Disk Group with the 1 SSD. The SSD performs the write and read caching for the HDD’s in its disk group. The HDD permanently stores the data.

Lets start with a single VM with the default # Failures To Tolerate (#FTT) equal to 1. A VM has at least 3 objects (namespace, swap, vmdk). Each object has 3 components (data 1, data 2, witness) to satisfy #FTT=1. Lets just focus on the vmdk object and say that the VM sits on host 1 with replicas/mirrors/copies (these terms can be used interchangeably) of its vmdk data on host 1 in rack 1 and host 2 in rack 2 and the witness on host 3 in rack 3. The rule in Virtual SAN is that each of these three components of an object (data 1, data 2, witness) must sit on different hosts. With Rack Awareness, they also must be in different hosts in different racks.

RackAware01

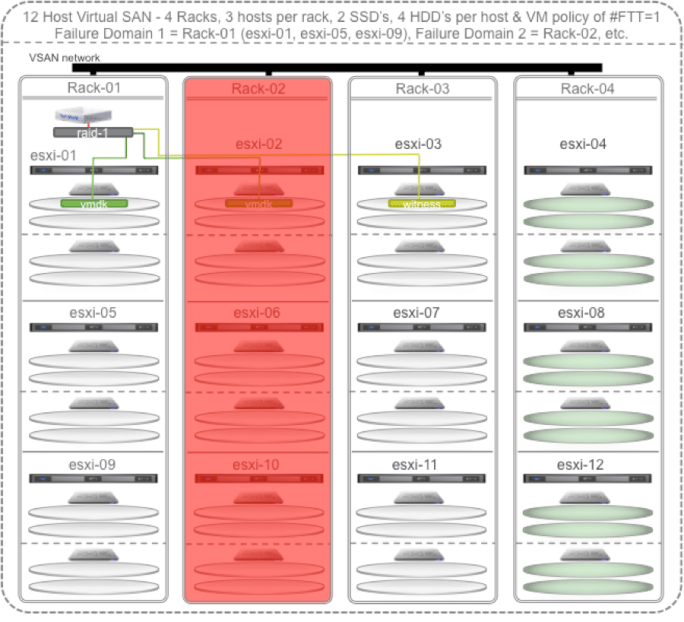

OK, lets start causing some trouble. With the default # Failures To Tolerate equal 1, VM data on VSAN should be available if a single SSD, a single HDD, a single host fails, or an entire rack fails.

Continue reading “Virtual SAN 6 Rack Awareness – Software Defined Self Healing with Failure Domains”
